EM15 series frequency inverter lifting application

Issuing time:2018-11-07 15:00Author:A

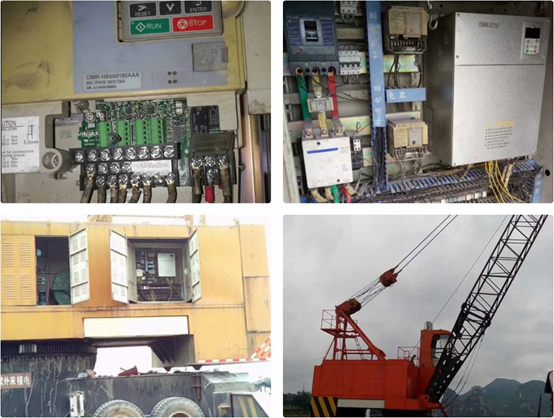

1.        EM12-G3-090 replaces the technicalrequirements for on-site control of the Yaskawa H1000 crane:

1)        When starting the frequency inverter, it is required to have a large low-frequencystarting torque and a smooth start.

2)        Start time is 3.0s (0-maximum frequency 100HZ), stop time is 5.0s (maximumfrequency 100HZ-0HZ)

3)        Requirements for shutdown: Accurate positioning and no hook slipping.

4)        The main lifting motor requires four speed controls, starting forward andreverse at 15HZ. The first section is 30HZ, the second section is 60HZ, and thethird section is 90HZ to improve on-site operation efficiency.

5)        The lifting site environment is harsh, requiring the frequency inverter tohave a wide voltage range, withstand harsh dust, high temperature, and othertests.

2.       Principles of on-site control

1)        When starting, DO1 outputs a collector signal to the small intermediaterelay, which then controls the motor's holding brake (opening the holding brakeduring operation and closing the holding brake when stopped)

2)        Braking control during the descent process of the main crane: Theequipment undergoes frequent forward and reverse rotation, acceleration anddeceleration, and braking operation during startup. Therefore, the frequency inverteroften switches between the 1.3 and 2.4 quadrants, especially during heavy loaddescent when the motor is dragged by a heavy object to maintain its speed inline with the rotating magnetic field and exceed the synchronous speed. At thistime, the motor changes from an electric state to a power generation state, andexcessive regenerative energy is fed back into the frequency inverter by thestator, This leads to an increase in the voltage of the inverter bus, and atthis time, the regenerative energy is consumed by the inverter P-externalbraking unit and resistor.

3)        The combination of DI1-D15 has a total of four speeds, and the on-siterequirement is to operate at a maximum of 90HZ to improve usage efficiency andensure that the vehicle does not slip.

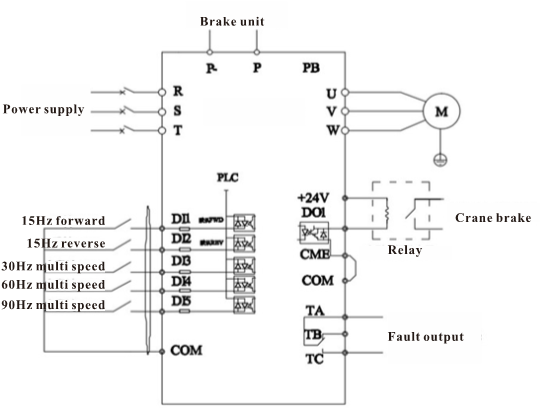

3.       Field application wiring diagram

4.       Set parameters.

NO.

Code

Set parameter

Discreption

Remark

1

b0-02

1

Terminal control


2

b0-03

6

Multi-function


3

b0-13

100

Maximum   frequency


4

b0-15

100

Frequency upper limit


5

b0-21

7

Acceleration   time


6

b0-22

7

Deceleration   time


7

b3-06

37

Fault reset


8

b4-03

17

Frequency-level   detection FDT1 output

Relay controlled   holding brake output

9

b4-22

2.00

Frequency   detection value 1 (FDT1)

Brake output frequency,   exceeding the set value output

10

b4-23

0.00

Frequency   detection hysteresis 1 (FDT hysteresis 1)


11

C1-00

20

1 speed


12

C1-01

30

2 speed


13

C1-03

40

3 speed


14

C1-07

90

4 speed


15

d0-00

Motor rated   power

set according   motor nameplate


16

d0-02

Motor rated   current

17

d0-04

Motor rated   spped



NO.

Code

Set parameter

Discreption

Remark

1

b0-01

0

Vector control


2

d0-00

Motor rated   power

Set according   motor nameplate

Before   self-learning, b0-02 needs to set keyboard control

3

d0-01

Motor rated   voltage

4

d0-02

Motor rated   current

5

d0-03

Motor rated   frequency

6

d0-04

Motor rated   speed

Set d0-30=3,   press RUN to auto-tuning after displaying TUNE on the screen, and wait for   about 15 seconds for auto-tuning to complete

1

b0-02

1

Terminal control


2

b0-03

6

Multi-function


3

b0-13

Set according   motor nameplate

Maximum   frequency


4

b0-15

Frequency upper   limit

5

b0-21

10

Acceleration   time


6

b0-22

10

Deceleration   time


7

b3-02

6

Multi-speed 1


8

b4-02

17

Frequency-level   detection FDT1 output

Relay controlled   holding brake output

9

b4-03

3

Fault output


10

b4-22

2.00

Frequency   detection value 1 (FDT1)

Brake output   frequency, exceeding the set value output

11

b4-23

0.00

Frequency   detection hysteresis 1 (FDT hysteresis 1)

12

C1-00

~

Starting   frequency

DI1 and COM   closed or DI2 and COM closed

13

C1-01

100

High speed   frequency


14

A2-05

0

Voltage limit   selection is disabled
