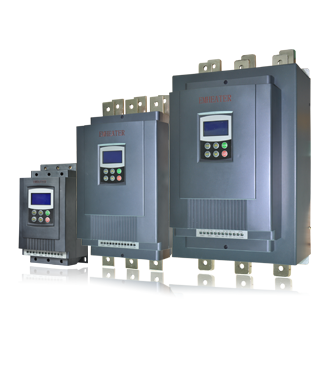

EM-GS Bypass Soft Starter
EM-GS Bypass Soft Starter
Feature
Specification
Application
Download


Product features


Reliable quality

  • The computer simulation design.

  • SMT production process.

  • Good EMC performance.

  • The machine before delivery on the high temperature aging, vibration test.

Perfect and reliable system protection function

  • Protection of no voltage, less voltage and over   voltage.

  • Protection of overheating and starting time too long.

  • Protection of Input phase lost, output phase lost and   3phase unbalance.

  • Protection of starting over current, running overload, and load short circuit protection.

Maintenance function

  • Fault self-diagnosis(short circuit, over voltage, less voltage, one phase grounded, motor overload, one phase lost, motor blocked, and intelligent software can inspect drag system working state).

  • Combination of modular design, according to the fault display content, quick troubleshooting.

Independent intellectual property products

  • Independently software copyright.

  • Motor starting and protection proprietary technology.

  • Unique way to detect debug equipment and process.

Quick and thoughtful after-sales service

  • Reliable performances lay the foundation of qualified service and quality.

  • Provide perfect system solution.

  • The timely and thoughtful Consulting Services.

  • Constantly improve the product performance according to user's opinion.



Model

Power

Current

External Dimensions

(mm)

Installation Dimensions

(mm)

N.W

(KW)

(A)

H

W

D

A

B

d

(Kg)

EM-GS3-5d5

5.5

11

293

147

160

248

132

M6

<4.8

EM-GS3-7d5

7.5

15

293

147

160

248

132

M6

<4.8

EM-GS3-011

11

23

293

147

160

248

132

M6

<4.8

EM-GS3-015

15

30

293

147

160

248

132

M6

<4.8

EM-GS3-018

18.5

37

293

147

160

248

132

M6

<4.8

EM-GS3-022

22

45

293

147

160

248

132

M6

<4.8

EM-GS3-030

30

60

293

147

160

248

132

M6

<4.8

EM-GS3-037

37

75

293

147

160

248

132

M6

<4.8

EM-GS3-045

45

90

293

147

160

248

132

M6

<4.8

EM-GS3-055

55

110

293

147

160

248

132

M6

<4.8

EM-GS3-075

75

150

293

147

160

248

132

M6

<4.8

EM-GS3-090

90

180

525

257

200

382

192

M8

<20

EM-GS3-115

115

230

525

257

200

382

192

M8

<20

EM-GS3-132

132

260

525

257

200

382

192

M8

<20

EM-GS3-160

160

320

525

257

200

382

192

M8

<20

EM-GS3-185

185

370

525

257

200

382

192

M8

<20

EM-GS3-200

200

400

525

257

200

382

192

M8

<20

EM-GS3-250

250

500

525

257

200

382

192

M8

<20

EM-GS3-280

280

560

525

257

200

382

192

M8

<20

EM-GS3-320

320

630

570

290

255

460

260

M8

<25

EM-GS3-355

355

710

570

290

255

460

260

M8

<25

EM-GS3-400

400

800

595

330

255

497

265

M8

<31

EM-GS3-450

450

900

595

330

255

497

265

M8

<31

EM-GS3-500

500

1000

665

410

255

547

350

M8

<45

EM-GS3-600

600

1200

665

410

255

547

350

M8

<45
